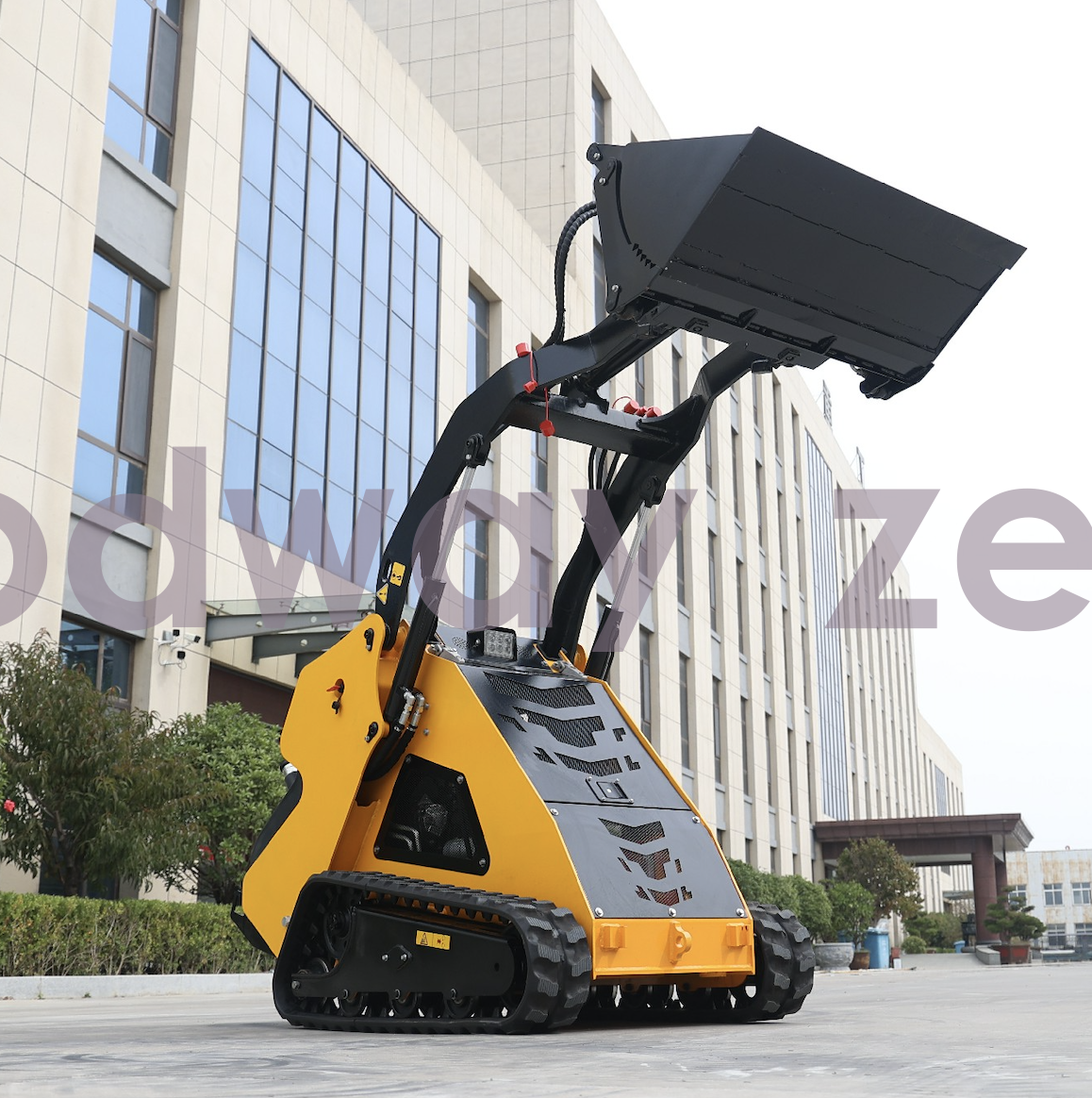

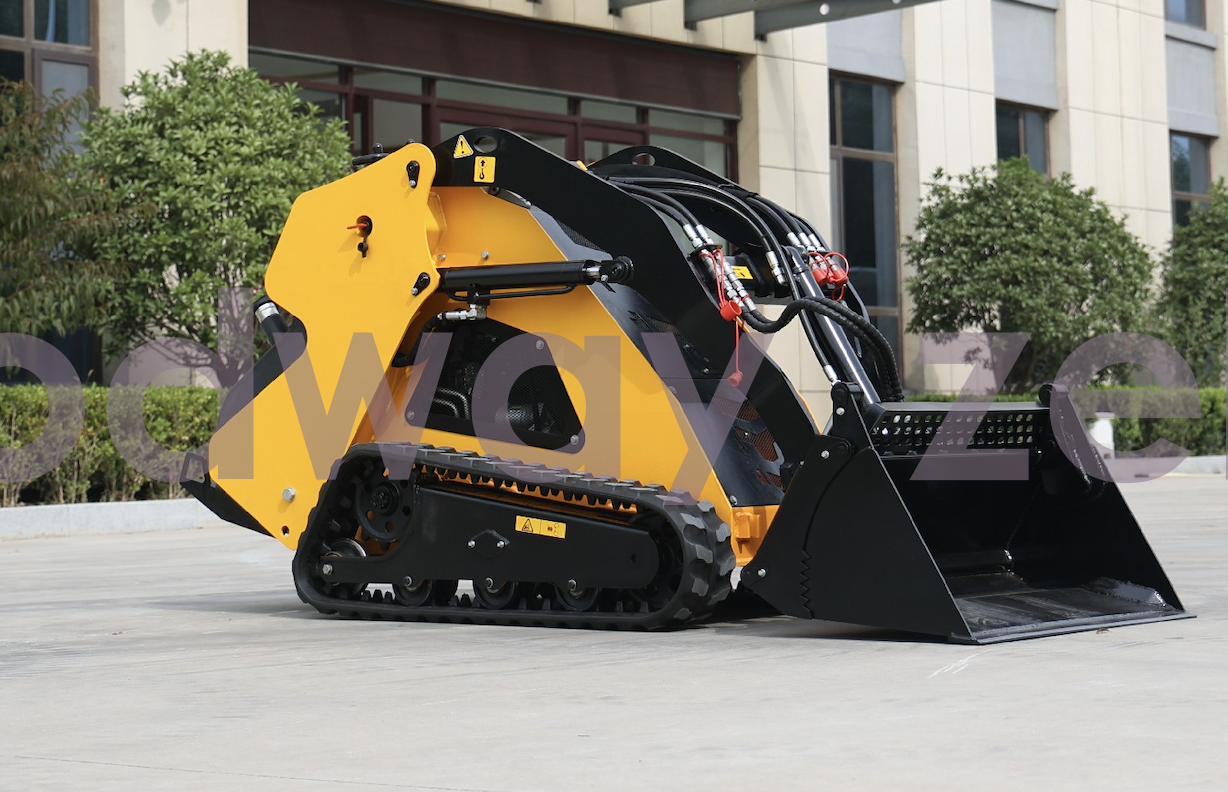

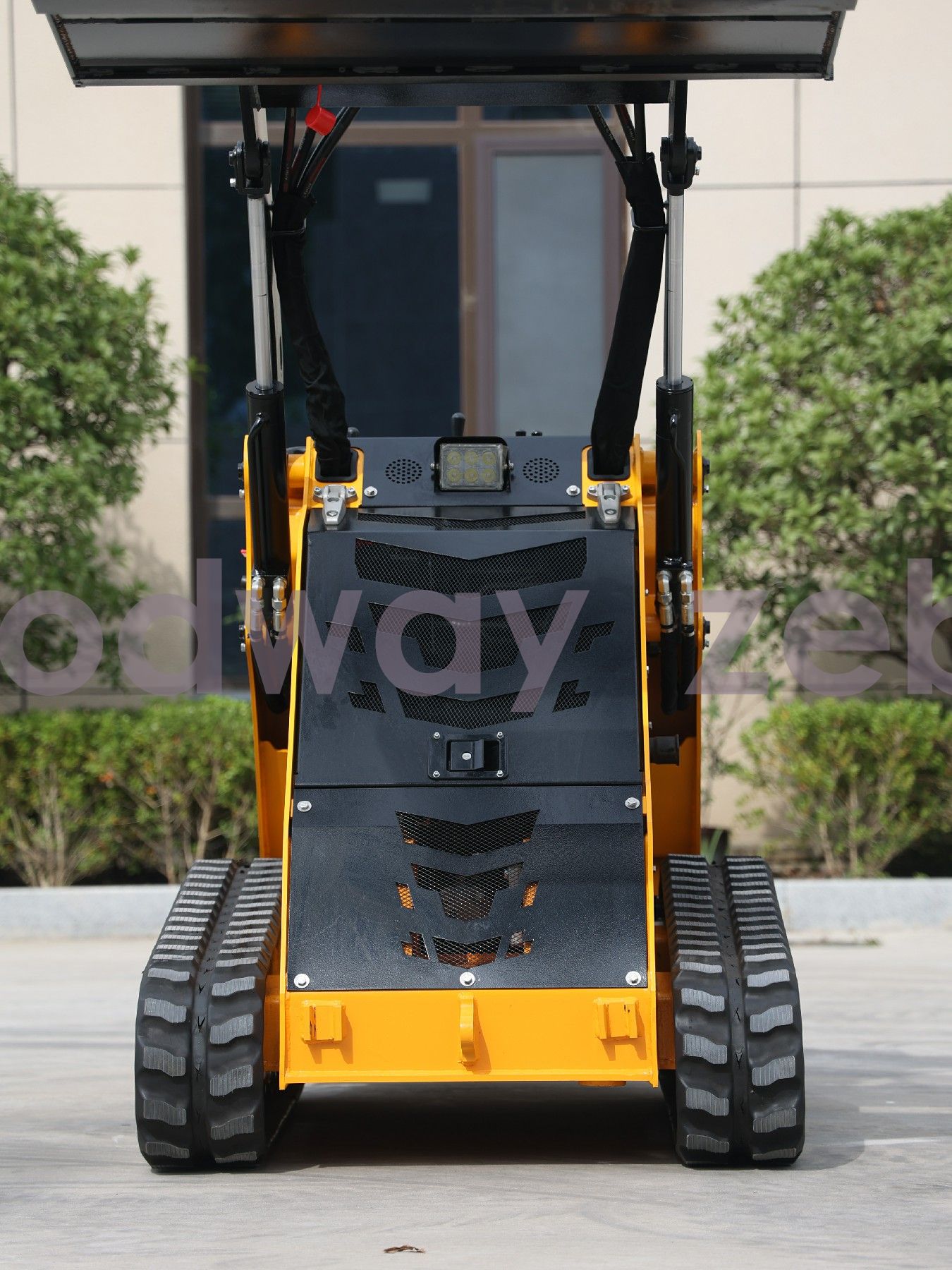

Mini Skid Steer Loader

PERFORMANCESAE Rated operating capacity 494 lb (224 kg)Ground Pressure 3.38 pis

Online inquiry

Description Services

Description

PERFORMANCE

SAE Rated operating capacity 494 lb (224 kg)

Ground Pressure 3.38 pis (0.233 bar)

Tipping Capacity 1411 lb (640 kg)

Weight (no attachment) 2513 lb (1140 kg)

Travel Speed 3.5 mph (5.6 km/h)

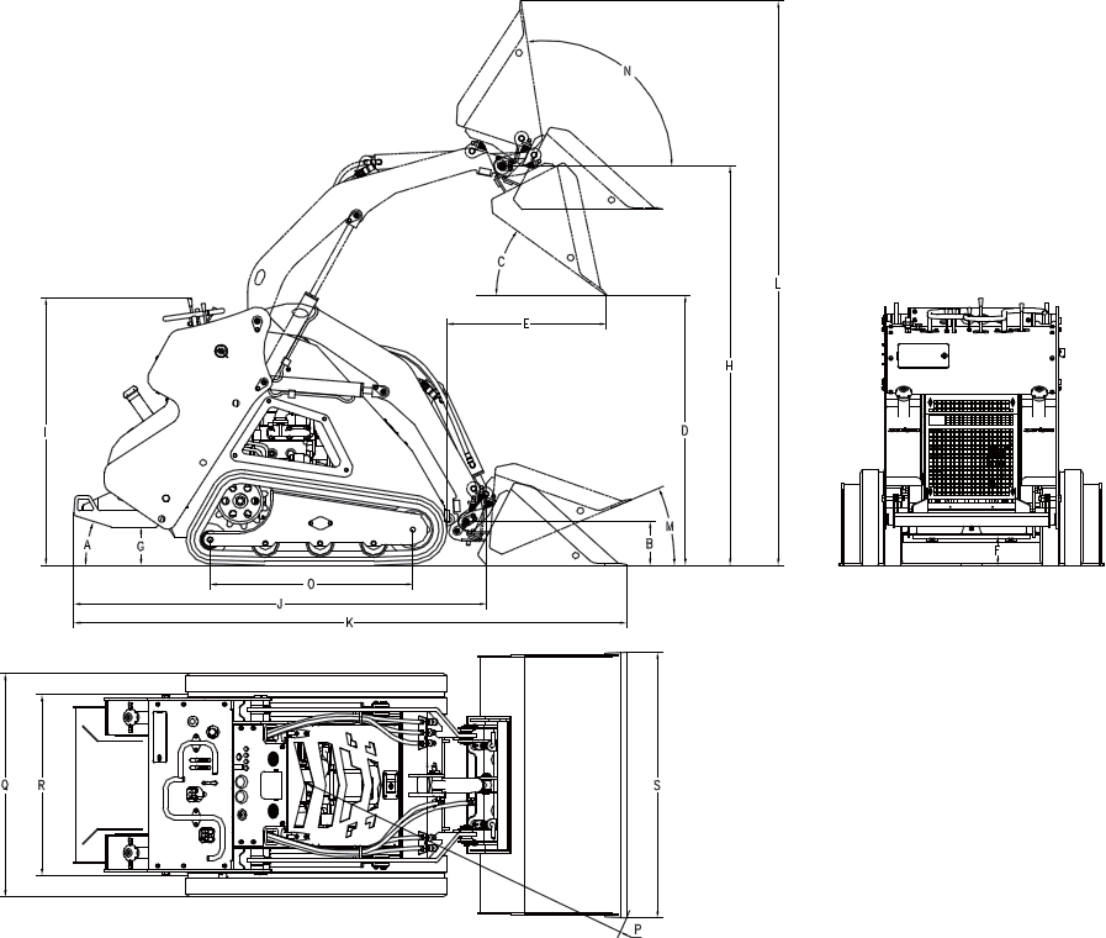

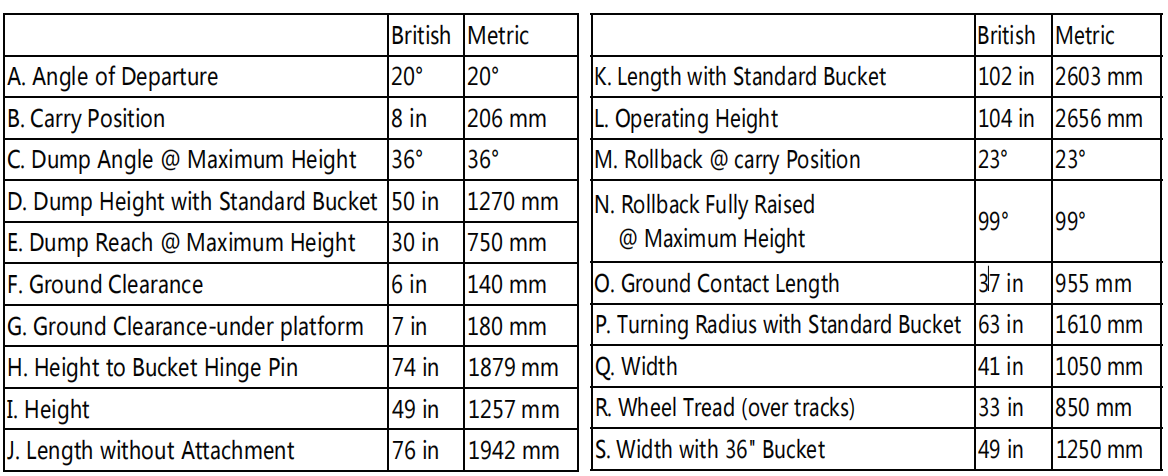

DIMENSIONS

ength (without bucket) 76 in (1942 mm)

width (with bucket) 49 in (1250 mm)

height 49 in (1257 mm)

height to bucket pin 74 in (1879 mm)

ENGINE

Make/Model YANMAR // 3TNV82A-BDSA2

Fuel/Cooling Diesel/Liquid

Cylinders 3

Horsepower (SAE Gross) 30 hp (22.2 kw)

HP/Displacement 1.331L

Fuel Tank Capacity 9.2 gal (35 L)

Air Cleaner Heavy-duty dual element

OPERATION

Steering and Drive Direction and speed controlled

by one multi-function handle.

Lift and Tilt Raise/lower and dump/rollback controlled

by one lever.

Transmission Hydrostatic track drive system.

Attachment Single lever with dual direction detent.

ELECTRICAL SYSTEM

System Val tage 12V 65Ah

AlC tern at or Output 55amps

STANDARD FEATURES

Auxiliary Hydraulics Liquid-Cooled Diesel Engine

Solenoid oil control valve

Mounting System Neutral Start Interlocks

Gauges/Warning Lights Parking Brake

Hydrostatic DriveTrain Reverse Stop Panel

Lift Arm Lockout Spark Arrestor Muff ier

Manual 2 Speed Bypass Tie-down Locations

Lift Arm Support Tilt Lockout

Lift Hook Locations Tracks(7.8in.wide)

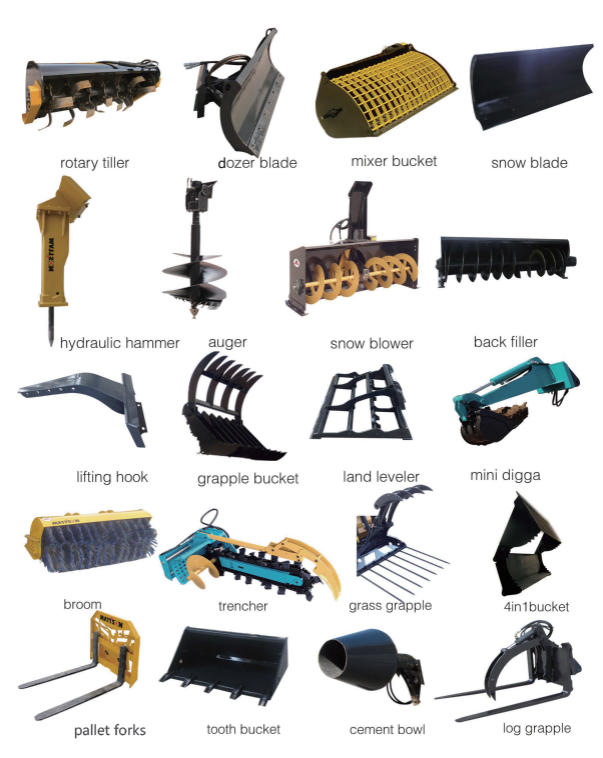

OPTIONS/ACCESSORIES

Services

Warranty

♦ 12-month warranty.

Guarantee

♦ Engine and all parts are 100% genuine and certificate is with it.

♦ Machine is verified and inspection and adjustments are completed as well as verified in writing.

♦ Testing is done and results are verified in writing.

After-sales Support

♦ 24/7 service by chat online and phone.

♦ Lifelong and free technical support.

♦ Free parts will be expressed to you under warranty if parts of the machine are damaged.

♦ Free troubleshooting.
